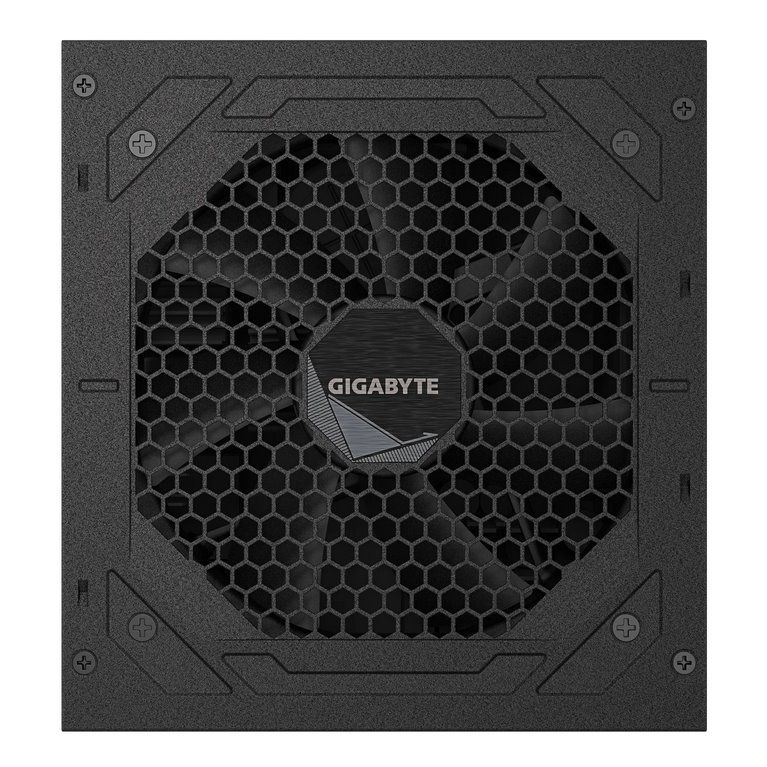

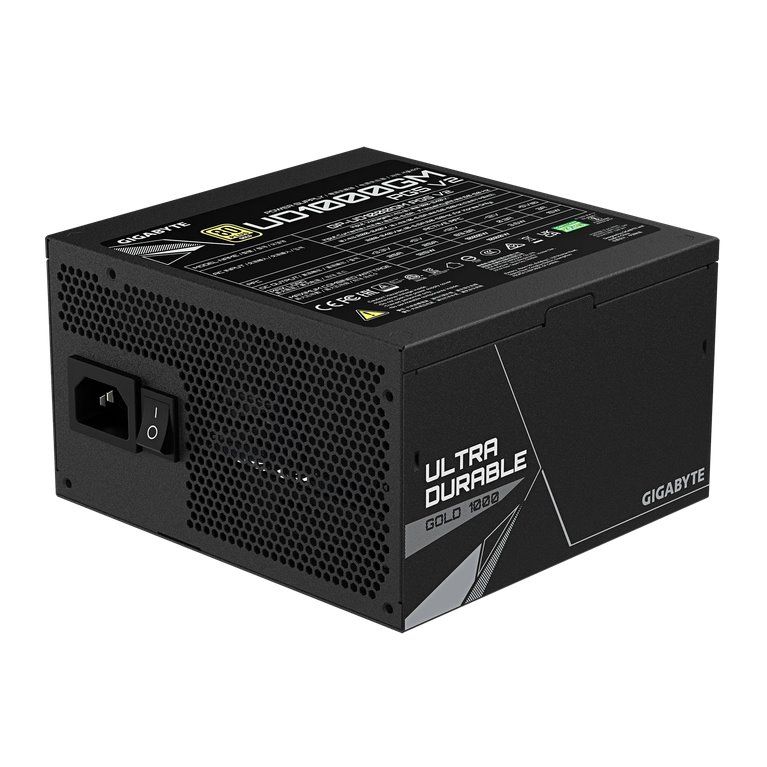

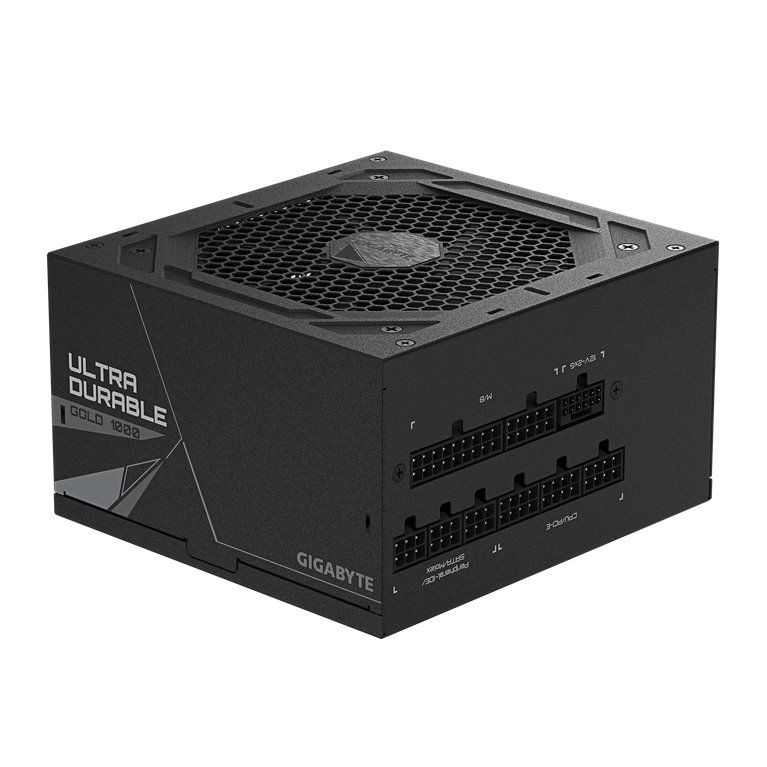

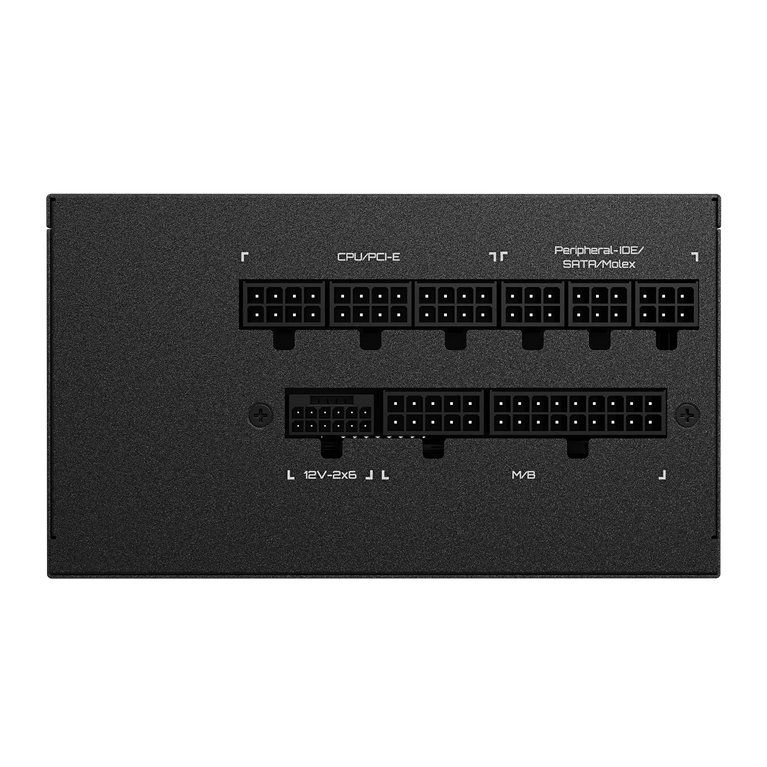

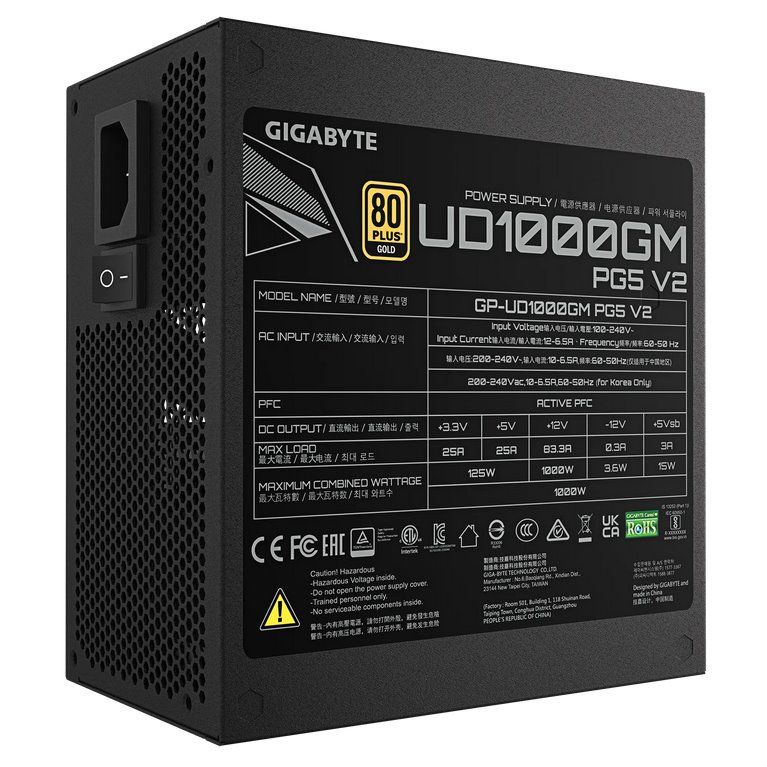

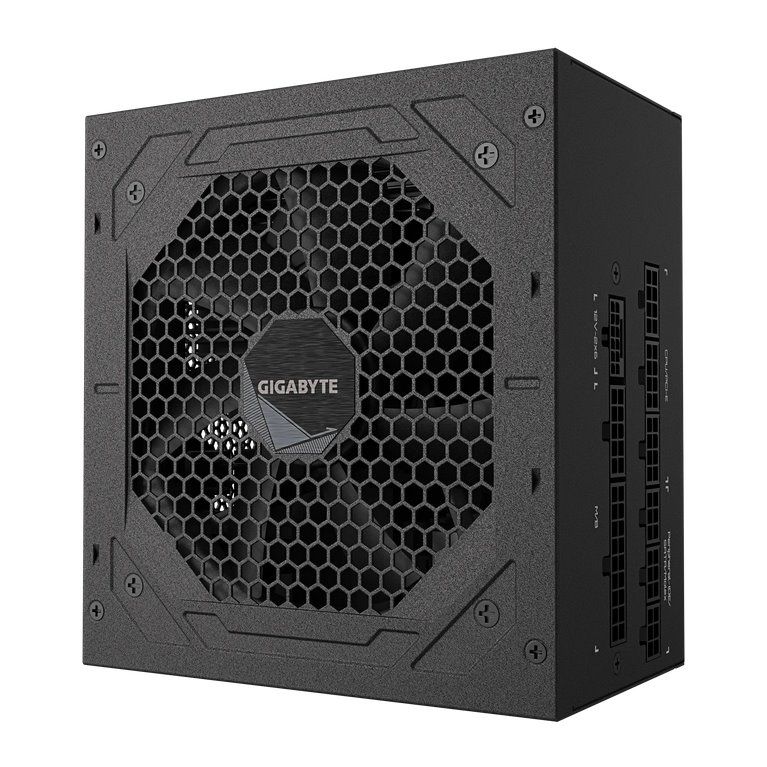

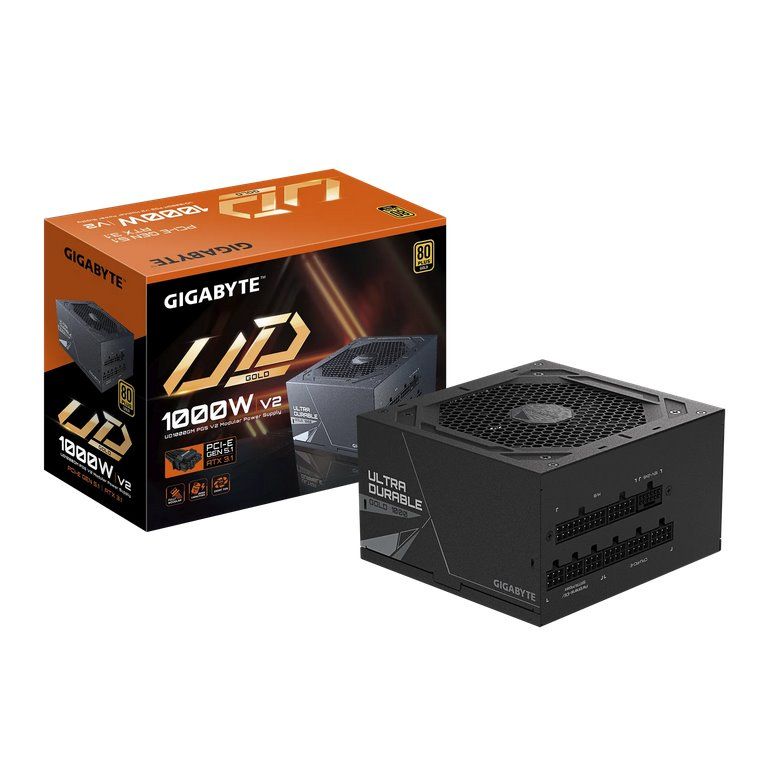

Name: Gigabyte UD1000GM PG5 V2 1000W 80+ Gold Modular PCIe 5
Brand: GIGABYTE
SKU: 502365
Price: 117.58 EUR
Availability: Discontinued

Gigabyte UD1000GM PG5 V2 1000W 80+ Gold Modular PCIe 5 [GP-UD1000GM PG5 V2]

Features Ultra Durable 100% Japanese capacitors 120mm smart hydraulic bearing (HYB) fan Optimized thermal solution OVP/OPP/SCP/UVP/OCP/OTP protection Intel ATX 3.1 and PCIe Gen 5.1 ready 80 PLUS Gold certified Fully modular design Powerful single +12V rail Compact size Model GP-UD1000GM PG5 V2 Type Intel Form Factor ATX 12V v3.1 PFC Active PFC (>0.9 typical) Input Voltage 100-240 Vac (full range) Input Current 15-6.5A Input Frequency 60-50 Hz Output Capacity 1000W Dimensions 150 x 140 x 86 mm Fan Type 120mm Hydraulic Bearing(HYB) Fan 80 PLUS Gold Efficiency 90% at typical load MTBF >100,000 hours Protections OVP/OPP/SCP/UVP/OCP/OTP Power Good Signal 100-150ms Hold Up Time >16ms Cable Type Embossed, All black Connectors ATX/MB 20+4 Pin x 1 : 610mm*1 CPU/EPS 4+4 Pin x 2 : 650mm+200mm*1 PCI-e 6+2 Pin x 4 : 600mm+150mm*2 PCI-e 12+4 Pin x 1:700mm*1 SATA x 8 : 600mm+150mm+150mm+150mm*2 4 Pin Peripheral x 3+4-Pin Floppy x 1 : 500mm+150mm+150mm+150mm*1

Viac informácií o Gigabyte UD1000GM PG5 V2 1000W 80+ Gold Modular PCIe 5 nájdete na stránke výrobcu
