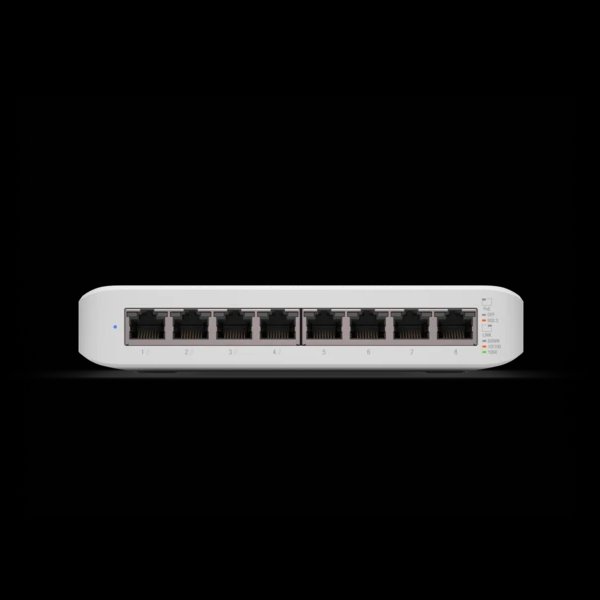

Ubiquiti UniFi switch Gen2 USW-Lite-8-POE Gen2 8x1000Mbps POE/POE+ (52W)
Technical Specifications
Mechanical

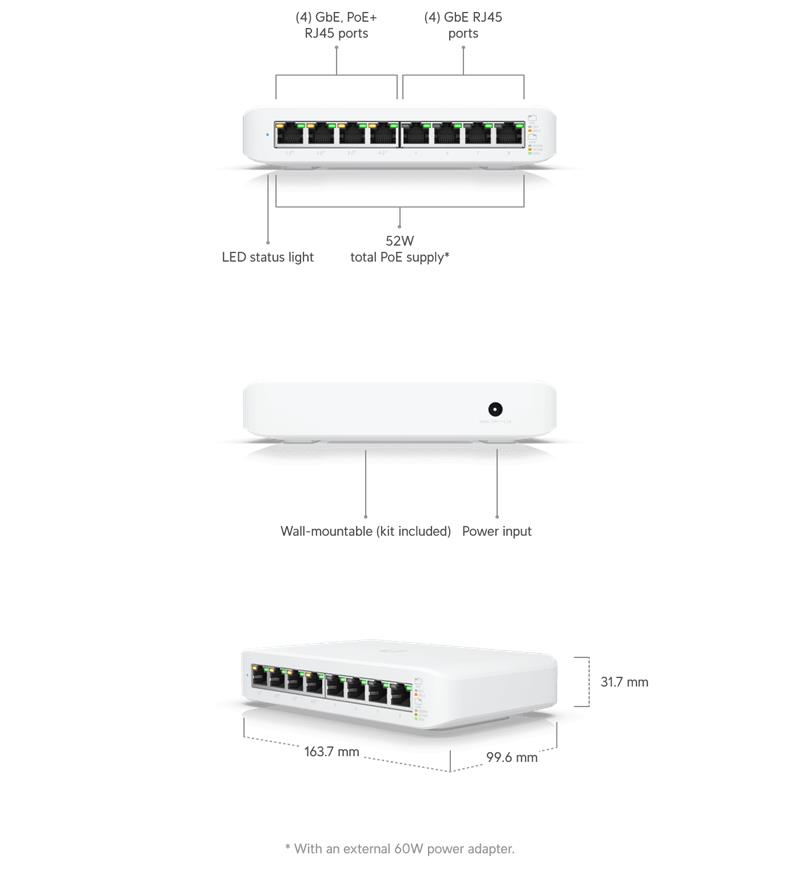

Dimensions 99.6 x 163.7 x 31.7 mm (4 x 6.4 x 1.3")
Weight 295 g (10.4 oz)
Enclosure material Polycarbonate
Hardware
Management interface Ethernet In-Band
Networking interface (8) GbE RJ45 ports
PoE interface (4) PoE/PoE+ (Pins 1, 2+; 3, 6-)
Total non-blocking throughput 8 Gbps
Switching capacity 16 Gbps
Power method 54V DC, 1.1A power adapter
Power supply 54V, external, 60W
Supported voltage range 50—57V DC
Max. power consumption 8W (Excluding PoE output)
Total available PoE 52W*
*With an external 60W power adapter.
Max. PoE wattage per port by PSE PoE+: 30W
Button Factory reset
Ambient operating temperature -15 to 40° C (5 to 104° F)
Ambient... Čítať ďalej
